Industrial Coin Counting Machine – MT 300
A Compact Coin Counting Machine for Coins and Blanks

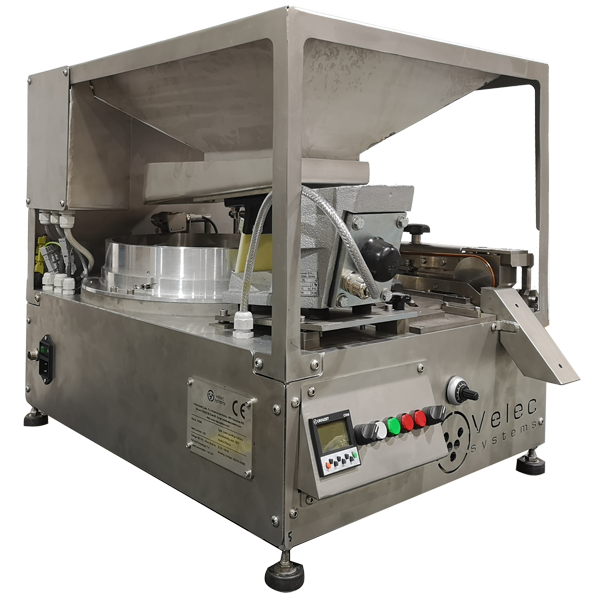

The VELEC MT 300 is a compact industrial coin counting machine designed to count and batch coins and coin blanks at high speed.
With an output of up to 4,000 coins per minute, it provides a reliable solution for mints and other manufacturers that need to process large volumes of identical coins or blanks.
The machine can be manually adjusted to accommodate products ranging from 15 to 35 mm in diameter and from 1 to 3.5 mm in thickness.
High-Speed and Accurate Coin Counting
The MT 300 uses an inductive sensor to count each coin as it passes through the machine. Operators can select the required batch quantity directly from the control screen and monitor the counting process in real time.
Once the preset quantity has been reached, the coin counting machine can communicate with upstream feeding equipment or a downstream bagging machine.
Key Benefits
- Counts up to 4,000 coins per minute
- Processes coins and coin blanks
- Preset batches from 1 to 999,999 coins
- Compact footprint for easy integration
- Manual adjustment for different diameters and thicknesses
- Inductive counting sensor
- Integrated reject channel for undersized coins
- Easy operation, cleaning and maintenance
Suitable for Different Coin Sizes
The MT 300 coin counting machine can be adjusted according to the diameter and thickness of the product being processed.
It is suitable for:
- Circulation coins
- Commemorative coins
- Collector coins
- Tokens
- Round coin blanks
- Other metallic products with similar dimensions
Its manually adjustable design makes it particularly suitable for production environments processing several coin formats while requiring a simple and robust counting solution.
Coin Counting Machine Performance
- Accepted coin diameter: 15 to 35 mm
- Accepted coin thickness: 1 to 3.5 mm
- Maximum counting speed: Up to 4,000 coins per minute for 15 mm coins
- Preset batch range: 1 to 999,999 coins
- Counting technology: Inductive sensor
- Format adjustment: Manual diameter and thickness settings
- Reject system: Dedicated channel for undersized coins
Technical Specifications
- Electronic control board and counter with operating buttons
- Single-phase 220 VAC power supply
- Power consumption below 300 W
- Machine weight: 70 kg
- Dimensions: 700 × 500 × 550 mm
Length × width × height - Dry contact for upstream feeding equipment
- Compatible with a vibrating hopper or hopper conveyor
- Dry contact for synchronization with a downstream bagging machine
- Easy access for cleaning and maintenance
Integrate the MT 300 into Your Coin Packaging Line
The MT 300 can operate as a stand-alone coin counting machine or be connected to additional equipment.
Depending on your production requirements, it can be integrated with:
- Vibrating feeding hoppers
- Hopper conveyors
- Coin bagging machines
- Collection containers
- Complete coin counting and packaging lines
VELEC Systems can support the integration of the machine into a complete solution adapted to your products, required output and packaging format.
Frequently Asked Questions
What is an industrial coin counting machine?
An industrial coin counting machine automatically counts large quantities of coins, blanks or tokens. Unlike retail coin sorters, it is designed for continuous production environments such as mints and coin manufacturing facilities.
How fast can the MT 300 count coins?
The MT 300 can count up to 4,000 coins per minute when processing round coins with a diameter of 15 mm. The actual output may vary depending on the dimensions and characteristics of the product.
Can the MT 300 count different coin sizes?
Yes. The machine can process coins and blanks measuring between 15 and 35 mm in diameter and between 1 and 3.5 mm in thickness. The diameter and thickness settings are adjusted manually.
Can it create preset batches of coins?
Yes. Operators can program batches ranging from 1 to 999,999 coins using the machine’s control screen.
Does the machine sort different coin denominations?
The MT 300 is designed to count batches of coins or blanks with the same dimensions. It is not intended to sort a mixed batch of different denominations.
Can it be connected to a bagging machine?
Yes. The MT 300 includes a dry contact that allows it to connect and synchronize with a downstream bagging machine.
Can the coin counter be integrated into a complete line?
Yes. It can be connected to upstream feeding systems and downstream packaging equipment or incorporated into a complete customized coin counting and packaging line.
