High-Speed Coin Counting Machine – MT 600
High-Speed Coin Counting Machine for Coins and Blanks

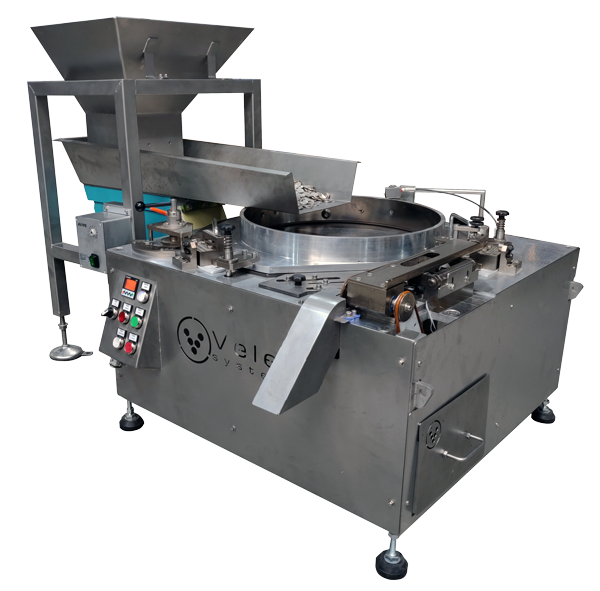

The VELEC MT 600 is a high-speed industrial coin counting machine designed to count, check and batch coins and coin blanks.
With an output of up to 8,000 coins per minute for 15 mm products, it is suitable for mints and coin manufacturers processing large production volumes.
The machine can accommodate round coins and blanks ranging from 15 to 40 mm in diameter and from 1 to 3.5 mm in thickness.
Fast and Reliable Coin Counting
The MT 600 combines high counting speed with accurate batch preparation. Coins are fed into the machine, aligned and detected by an inductive counting sensor before being transferred to the downstream collection or bagging system.
Operators can define the required batch quantity directly from the machine controls. Once the preset quantity has been reached, the MT 600 can communicate with the upstream feeding system and downstream bagging equipment.
Key Benefits
- Counts up to 8,000 coins per minute
- Suitable for coins, tokens and coin blanks
- Processes diameters from 15 to 40 mm
- Preset batches from 1 to 1,000,000 coins
- Reliable inductive counting sensor
- Manual adjustment for different coin dimensions
- Compatible with upstream feeding equipment
- Can be synchronized with a downstream bagging machine
- Easy access for cleaning and maintenance
Suitable for High-Volume Coin Production
The MT 600 coin counting machine is designed for production environments requiring fast and repeatable counting.
It can be used for:
- Circulation coins
- Collector coins
- Commemorative coins
- Tokens
- Round coin blanks
- Metallic discs with similar dimensions
Its high throughput makes it particularly suitable for large production batches and continuous coin processing operations.
Coin Counting Machine Performance
- Accepted coin diameter: 15 to 40 mm
- Accepted coin thickness: 1 to 3.5 mm
- Maximum counting speed: Up to 8,000 coins per minute for 15 mm coins
- Preset batch range: 1 to 1,000,000 coins
- Counting technology: Inductive sensor
- Format adjustment: Manual diameter and thickness settings
The actual counting speed may vary depending on the diameter, thickness and characteristics of the coins being processed.
Accurate Coin Batching
The MT 600 allows operators to create preset batches of coins according to their production and packaging requirements.
The required quantity can be entered directly into the machine controls. The counting cycle is then managed automatically until the programmed batch quantity has been reached.
This helps manufacturers:
- Reduce manual counting operations
- Improve batch consistency
- Limit counting errors
- Prepare coins for bagging or downstream packaging
- Increase production throughput
Technical Specifications
- Electronic control board and counter with operating buttons
- Single-phase 220 VAC power supply
- Power consumption below 400 W
- Machine weight: 200 kg
- Machine dimensions: 900 × 900 × 550 mm
Length × width × height - Dry contact for connection to upstream feeding equipment
- Compatible with a vibrating hopper or hopper conveyor
- Dry contact for synchronization with a downstream bagging machine
- Easy access for cleaning and maintenance
Frequently Asked Questions
What is the MT 600 coin counting machine used for?
The MT 600 is designed to count and batch large quantities of coins, tokens and round coin blanks. It is suitable for industrial production environments such as mints and coin manufacturing facilities.
How fast can the MT 600 count coins?
The machine can count up to 8,000 coins per minute when processing 15 mm round coins. The actual speed depends on the dimensions and characteristics of the product.
What coin sizes can the MT 600 process?
The MT 600 can process products measuring from 15 to 40 mm in diameter and from 1 to 3.5 mm in thickness.
Can it create preset batches of coins?
Yes. Operators can program batches from 1 to 1,000,000 coins using the machine controls.
Does the MT 600 sort different denominations?
No. The MT 600 is primarily designed to count batches of coins or blanks with the same dimensions. It is not intended to sort mixed denominations.
Can it be connected to a bagging machine?
Yes. The machine includes a dry contact that allows it to communicate and synchronize with downstream bagging equipment.
Is the MT 600 an automatic coin counting machine?
The counting and batching process is automatic. The term “manual” refers mainly to the manual adjustment of the machine when changing coin diameter or thickness.
Can the machine be integrated into a complete production line?
Yes. The MT 600 can be connected to upstream feeding equipment and downstream inspection, collection or bagging systems.
